Manufacturer: AES

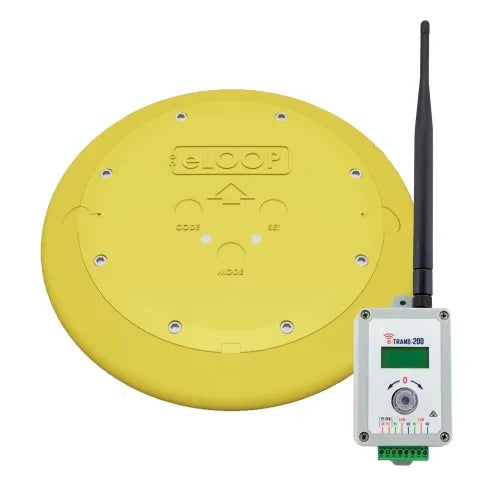

AES EL00C-RAD-KLT E-loop commercial kit with Trans 200 for Presence mode

AES EL00C-RAD-KLT E-loop commercial kit with Trans 200 for Presence mode

SKU:EL00C-RAD-KLT

Regular price £616.80
Regular price Sale price £616.80
Sale Sold out
Tax included.
Description

EL00C-RAD presence only commercial wireless detector with 200 Transceiver. Manage access for multi-unit complexes with up to 200 units.

The Radar sensors can detect vehicles that are stopped above the e-loop.
The added radar utilises two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an
oncoming vehicle, the transceiver relay will be latched and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop.

If the confirmation is missed, multiple attempts will be made to ensure A safe operation. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, confirmation mode

Installation
  • 1 - Code in e-Loop.
  • Secure e-Loop to the driveway.
  • e-Loop and you're ready to operate in less than 15 minutes. Save many hours of installation time compared to wired loop systems.
  • Compact profile - only 26mm high x 200mm diameter.
  • Not affected by ground movement.
  • 10600 mA battery giving up to 10 years battery life
  • High security 128 bit encryption.
  • Static load capacity 2500kg.
  • Range up to 50 meters.
  • Made of high impact plastic
    Additional Information

    The Commercial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles.

    These detections are transmitted to a nearby transceiver for gate activation. After the vehicle is detected, the e-loop will switch to radar mode.

    The sensors are installed on the surface of entry or exit passages using dynabolts, contain four replaceable Lithium batteries, and can withstand almost any vehicle.

    Note: Gate or door controller must have a dedicated open input and auto close function enabled
