AES SLIM-CL-ABK-EU 1 way wired audio intercom with keypad - black architectural

Description

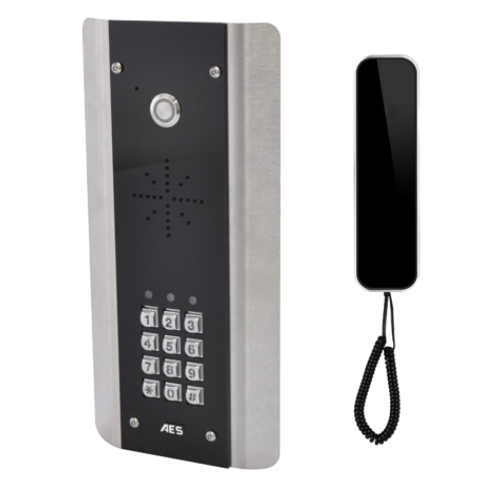

The AES SLIM-CL-ABK-EU is a 1 button hardwired audio system with a keypad and stainless steel panel. It comes with a surface mounted (calling 1) slim line audio panel.

Additional Information

The Black Slim line handset features all buttons necessary for opening a door or gate control.

The entrance panel features an optional backlight and is manufactured from stainless steel with a hardened acrylic fascia on the front.

Features

• Stylish curved architectural model.
• Modern blue back lighting effect.
• BS316 marine grade, brushed stainless steel construction with gloss acrylic trim.
• Illuminated code-lock keypad for access control.
• Keypad includes 3 relays, with latching and momentary operation.

Technical Specifications

• Power: 24v dc
• Working distance: 150m on 24AWG CAT5 cable
• Weather rating IP55
• Wiring 2x audio, 2x power, 2x door release
• Max handsets: 4
• Relay type: N/O momentary 4 second pulse
• 297 x 144 x 40 (hwd mm)

Kit Includes

• 1 x architectural panel
• 1 x white slim line handset
• 1 x Power supply
• 1 x manual
