Manufacturer: CAME

CAME BXV Rapid Sliding Gate Kit 24V up to 400kg

CAME BXV Rapid Sliding Gate Kit 24V up to 400kg

SKU:BXV400GF-KIT

Regular price £500.40
Regular price Sale price £500.40
Sale Sold out
Tax included.

CAME BXV400GF KIT

Complete Sliding Gate Kit for Residential and Apartment Block Settings up to a Maximum of 400kg in weight each leaf. RAL7024 Grey Motor with Tall Cover for Battery Capacity. CAME Connect. RIO Connect. Rapid Version.

Battery Backup Available

Battery backup is available for this motor for in the event of a mains power failure. Electric gates make it particularly difficult to gain access to a property if the mains power fails.

Slow Down on Open and Close

With this equipment you can adjust the speed of your gate as it approaches the open and closed positions. Further improving on the overall installation and provides a personalized and refined touch to each application.

Intensive Use

The motor is specifically designed for intensive use. Enjoy the comfort of an electric gate that can open and close for numerous visitors throughout the day. Particularly useful for shared entrance gates to a large number of residences.

Built in obstacle detection

This equipment features built in obstacle detection. Implemented correctly this can stop and reverse upon detection of an obstacle. Obstacles are detected when the gate experiences an increase in resistance that can be caused by a person a vehicle an object or even wind obstructing the path of the gate. Although this safety feature can be very effective. It is strongly advised that all installations undergo an impact force test to ensure the safety of anyone who may come in to contact with the gate. Further safety can be added with the addition of safety edges.

CAME Cloud Technology

Enjoy all the functionality of your CAME devices using a cloud based service. Monitor your video entry system from wherever you are via the internet. On smartphone you can receive audio/video calls from your entry panel and open your gate remotely using the XIP mobile app. Available on the App Store and Google Play.

Fast Motor

CAME RIO Total Wireless Safety

RIO System needs no hard wiring between the control unit and safety accessories speeding up installation time.This is ideal for bringing any existing system up to code. The control unit is linked to the operators control panel while the other modules communicate with the unit via radio.

CAME BXV Large Motor Housing

Offers the ability to include 2x 5.0 ah batteries for the battery back up system. BXV400 offers 70+ battery back up operations. BXV600 offers 60+ battery back up operations. BXV1000 offers 55+ battery back up operations. The battery back up housing space offered by the BXV Large motor is also suitable to house additional 3rd party components such as induction loop cards. safety edge controllers or time clocks among many others when battery back up is not being used.

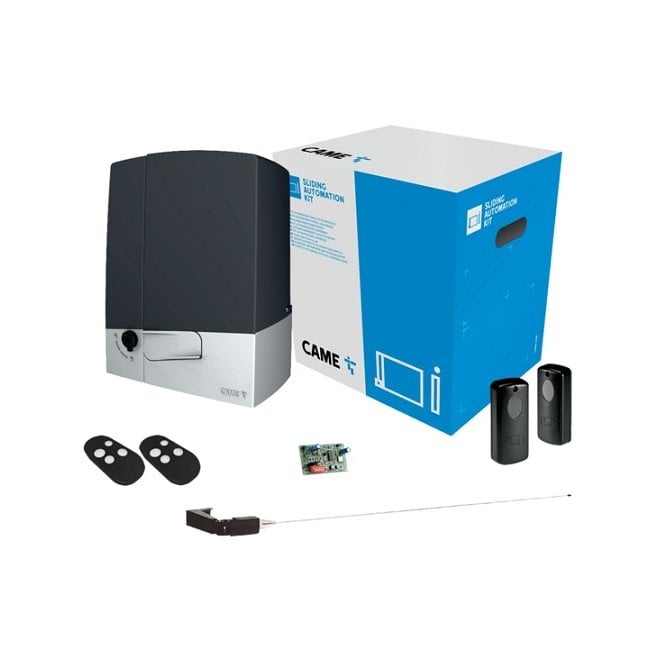

Kit includes
Quantity Item
1 CAME BXV04AGF 24v RAL7024 Grey Motor & Panel with Tall Cover - 801MS-0160
1 CAME AF43S Frequency Card
1 CAME DIR10 Pair of Safety Photocells
2 CAME TOPD4RKS Four Channel Black Radio Remote's - 806TS-0122
1 CAME TOP-A433N Antenna

Gate Type Sliding Gate

Single Or Twin Kit Single Gate Kit

Kit Max Weight Per Gate 400kg

Motor Electromechanical

Locking Method Mechanically Locking Motor

Power Supply Voltage 230v

Motor Voltage 24v

Gate Speed 22 M/Min

Duty Cycle Intensive

Obstacle Detection Built-In Obstacle Detection

Protection Rating IP 44

Category Sliding Gate Kit
