Manufacturer: CAME
CAME Electro mechanical automation for swing gates pair kit STYLOA-P24 up to 1.8m + Free RGSM connectivity kit
CAME Electro mechanical automation for swing gates pair kit STYLOA-P24 up to 1.8m + Free RGSM connectivity kit
SKU:STYLOA-P24
Couldn't load pickup availability
CAME STYLOA-P24 KIT + Free RGSM connectivity kit
Complete kit for a pair of residential small gate post swing gates up to a maximum of 1.8m in width or 150kg in weight for each leaf
Battery Backup Available
Battery backup is available for this motor in the event of a main power failure. Electric gates make it particularly difficult to gain access to a property if the mains power fails.
Slow Down on Open and Close
With this equipment, you can adjust the speed of your gate as it approaches the open and closed positions. Further improving on the overall installation and provides a personalized and refined touch to each application.
Integrated Open & Close Limits
This equipment features adjustable open and close limits. This allows you to set the limits of the gate of travel without the need for a physical stop in the ground. This feature has some limitations and may not function correctly on wider gates. If your gates are over 1.8m in width it is advisable to talk to us before ordering if this feature is critical to your installation.
LCD Display
Control Panel with LCD for simplified programming.
Intensive Use
The motor is specifically designed for intensive use. Enjoy the comfort of an electric gate that can open and close for numerous visitors throughout the day. Particularly useful for shared entrance gates to a large number of residences.
Built-in obstacle detection
This equipment features built-in obstacle detection. Implemented correctly this can stop and reverse upon detection of an obstacle. Obstacles are detected when the gate experiences an increase in resistance that can be caused by a person a vehicle an object or even wind obstructing the path of the gate. Although this safety feature can be very effective. It is strongly advised that all installations undergo an impact force test to ensure the safety of anyone who may come in contact with the gate. Further safety can be added with the addition of safety edges.
Quick & Easy Installation
Equipment designed for the quick & easy installation of existing hinged swing gates. Can be easily fitted to gates and pillars with minimal excavation needed for the supply of mains power to the control board & low voltage cabling to the motors
The new RGSM range exploits GSM networks and gives, end-users and installers, total control of automated systems, at all times. This particular module also provides smart operation of all types of automation: thanks to the RGSM, you can now connect and remotely manage all automated devices in the CAME range.
StyloA-P24 24v Electro mechanical automation for swing gates up to 1.8m (with encoder),
|

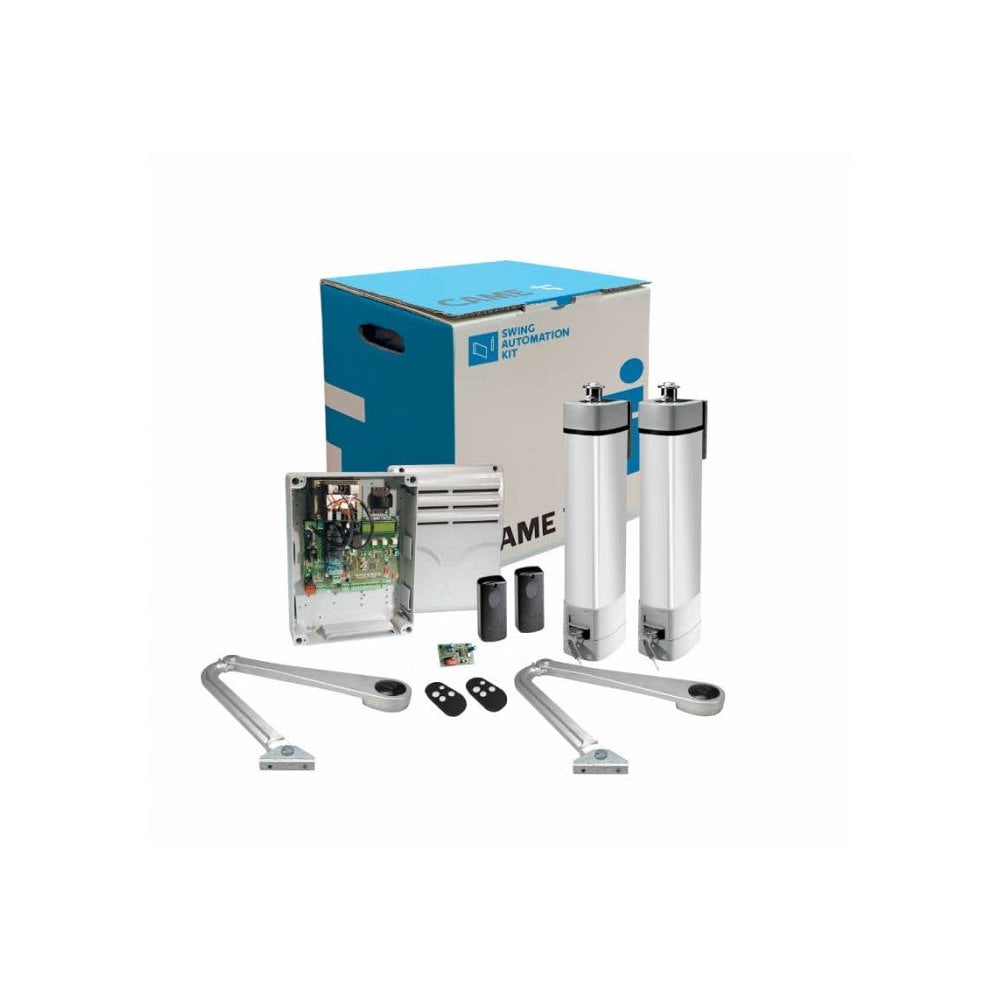

What comes in the box |
|
|---|---|
| Quantity | Item |
| 2 | CAME STYLO-ME 24v Motor's |
| 1 | CAME AF43S Frequency Card 433MHz |
| 1 | CAME DIR-10 Pair of safety photocells |
| 1 | CAME ZL92Z Control Panel |
| 2 | CAME TOPD4RKS Radio Remotes - 806TS-0122 |
| 1 | CAME TOP-A433N Antenna |
| 2 | CAME STYLO-BS Articulated Arm's |
Features:
- Reliable and sturdy
- Custom-key release system
- Movement controlled by the encoder
- Can operate in emergency mode during power outages
- Compliance tested to meet UK standards
Technical Specifications:
- STYLO is fully Connect compatible, allowing full remote control and system management
- STYLO is compatible with the CAME Key, allowing for simple setup and backup by smartphone.
