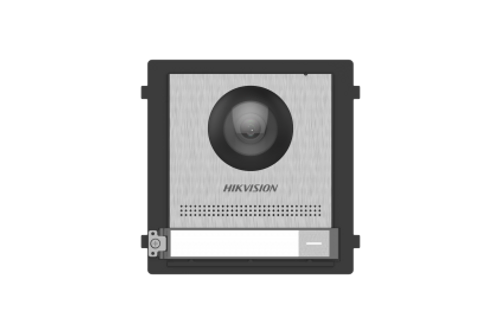

Hikvision 1 button 2 wire video module stainless steel

Description

This Hikvision stainless steel finish video module is for the 2 wire Pro Series. Featuring a 2MP wide angle camera with IR supplement light for night visibility.

Additional Information

The unit is powered from the video/audio distribution module (KAD706) using 2 wire cable which at the same time carries the data making the system very simple to install, and easy to upgrade existing intercom systems.

You can answer calls & open the gate using the indoor 7 inch touch screen and remotely via the hikconnect mobile app or via PC using IVMS-4200.

• Two-pin wire for power supply and network access
• Access control function
• Noise suppression and echo cancellation
• H.264 video compression
• Low illumination
• Tampering alarm
• Fisheye camera with IR supplement light
• Supports sub-modules' access (max. 8)
• Name-tag customisation

Additional modules such as touch and display, keypad and proximity can be integrated for a customisable intercom and additional features!

Technical Specification

• Supplement Light IR supplement
• FOV Horizontal 180° Vertical: 96°
• Pixel Main stream : 1920 × 1080 Sub stream : 720 × 480
• Audio Quality Noise suppression and echo cancellation
• SUB Door station capacity 16
• Network Interface 1
• Exit button interface 2
• Lock control interface 2
• Door contact Input interface 2
• Power Interface 1
• Protective Level IP65
• Working Temperature -40° C to +55° C(-40° F to 131° F)
• Working Humidity 10% to 95%
• Dimensions 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")
• Power Supply 24VDC Two wire power supply or 12VDC Independant power supply
• Application Environment Outdoor
• Power Consumption 4 W
