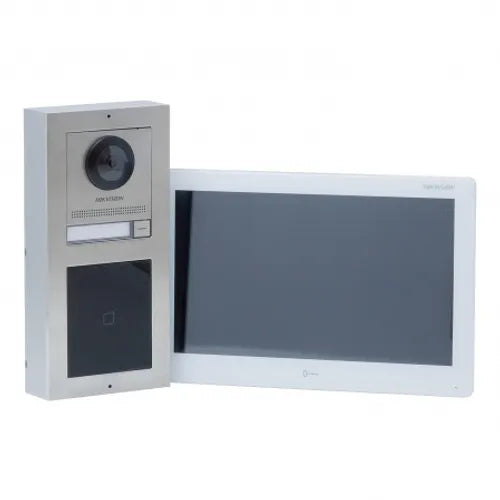

Hikvision 1 button IP video kit, touch and display and 10 inch monitor stainless

Description

This Hikvision stainless steel finish video IP Pro kit includes a touch and display module with a 10 inch touch screen LCD monitor.

Featuring a 2MP HD Camera, with IR supplement light for night visibility and content display on screen.

Additional Information

The IP video module is powered by the PoE switch module or 12VDC making it very simple to install, connecting to the indoor tablet using IP protocol over the local network.

You can answer calls & open the gate using the indoor 10 inch touch screen and remotely via the hikconnect mobile app or via PC using IVMS-4200.

• Modular door station Main unit, needs mounting bracket
• 2MP HD Camera, Fish eye, IR Supplement
• 1 Call physical Button, 2 lock relays, 4-ch alarm input
• Video intercom to indoor station and master station
• WEB Configuration
• IP65, 12 VDC or standard PoE

This Hikvision touch display has a built in Mifare card reader.

• Modular door station Touch & Display module, needs a mounting bracket
• 4 inch touch screen, IP65-IK8
• Dial number display, pin code & card unlock, contact list & advertisement display
• Stores and searches contact list
• Multiple languages

Technical Specification

• ROM 32 MB
• RAM 256 MB
• CPU Embedded Processor
• Supplement Light IR supplement
• FOV Horizontal 146° Vertical: 82°
• Resolution 2MP
• Audio Quality Noise suppression and echo cancellation
• Audio Output Built in loudspeaker
• Audio Input Built in omnidirectional microphone
• SUB Door station capacity 16
• User capacity 2000
• Card capacity 6000
• Network Interface 1 RJ45
• Exit button interface 2 (2 for lock control)
• Door contact Input interface 2
• RS-485 1 (1 for Jikvision cub module communication)
• Power Interface 12 VDC Power output
• Protective Level IP65
• Working Temperature -40° C to +60° C(-40° F to 140° F)
• Working Humidity 10% to 95%
• Dimensions 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
• Power Supply 24VDC Two wire power supply or 12VDC Independant power supply
• Application Environment Outdoor
• Power Consumption 5 W
• ROM 32 MB
• RAM 128 MB
• Screen Size 4-inch
• Type IPS touch screen
• Resolution 480 x 480
• Brightness 500 cd/m2
• Audio Output Buzzer
• Wireless Network Only AP mode
• Card Reading Frequency 13.56 MHz
• Card Reading Distance 2 cm
• Card Type Mifare card
• TF Card Reserved
• DIP Switch 8 bits
• Cascade Interface 2
• Installation Surface OR flush
• Protective Level IP65, IK8
• Working Temperature -20 °C to 60 °C (-4 °F to 140 °F)
• Working Humidity 10% to 95% (no-condensing)
• Dimensions 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
• Power Supply 12 VDC, supplied by the main module
• Power Consumption≤ 4 W

• SURFACE MOUNT BRACKET SPECIFICATION

• Dimensions
  • For cover 117 x 107 × 4 mm (4.61" x 4.21" x 0.16"),
  • For installation Frame 117 x 107 × 32.7 mm (4.61" x 4.21" x 1.29")

• ROM -8 GB Emmc


• RAM -2 GB
• CPU -Embedded processor
• Audio Input Built-in omnidirectional microphone
• Audio Output Built-in loudspeaker
• Audio Compression Bitrate 64 Kbps
• Audio Quality Noise suppression and echo cancellation
• Volume Adjustment enabled
• Event Capacity 200
• Notice Capacity 16
• Linked Indoor Extensions Capacity 15
• Alarm Input 8
• Network Interface 1 RJ-45 10/100 Mbps self-adaptive
• RS-485 1
• TF Card Reserved
• Alarm Output 1 relay output, 1 alarm output
• Power Interface 1
• Working Temperature -10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity 10% to 90%
• Dimensions 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
• Power Supply IEEE802.3af, standard PoE 12 VDC, 1 A
• Application Environment Indoor use only
• Power Consumption ≤ 8 W
