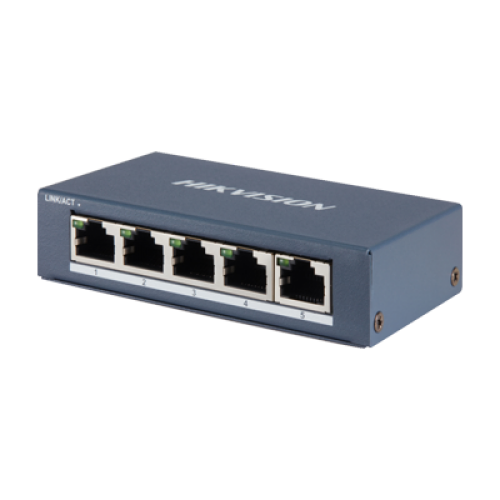

Hikvision 5 Port Gigabit Unmanaged Switch

Description

The Hikvision switch is a layer 2 gigabit Ethernet switch, providing 5 x 1000M Ethernet ports to upload data via the convergence switch.

The switch is reliable, easy to install and maintain, equipped with rapid switch function. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices.

Additional Information

• 5 x 1000M Ethernet ports.

• Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.

• 1000M network access.

• Wire-speed forwarding and non-blocking design.

• Store-and-forward switching.

• Solid high-strength metal shell.

• Fan-free design with high reliability.

Technical Specification

• PORT NUMBERS - 5 x 1000M Ethernet port
• PORT TYPE - RJ45 port, Full duplex, MDI/MDI-X adaptive
• PROCESSING TYPE - Store-and-forward switching
• MAC- address table 2 K
• EXCHANGE CAPACITY - 10 Gbps
• PACKET FORWARDING RATE - 7.44 Mpps
• INTERNET CACHE - 1 Mbits
• WEIGHT - 0.15 kg (0.3 lb)
• DIMENSIONS (L × H × D) 103 mm × 25.6 mm × 61.1 mm
• OPERATING TEMP - 0˚C to 40˚C (32˚F to 104˚F)
• STORAGE TEMP - –40˚C to 85˚C (–40˚F to 185˚F)
• POWER SUPPLY - 5 VDC，1 A
