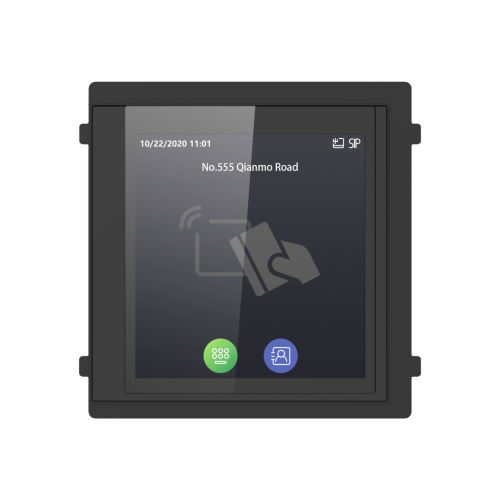

Hikvision Touch and display module

Description

This Hikvision touch display has a built in Mifare card reader.

Enabling content display on the screen, must be combined with the DS-KD8003-IME1/2 door station.

Additional Information

• Modular door station Touch & Display module, needs a mounting bracket
• 4 inch touch screen, IP65-IK8
• Dial number display, pin code & card unlock, contact list & advertisement display
• Stores and searches contact list
• Multiple languages

Technical Specification

• ROM 32 MB
• RAM 128 MB
• Screen Size 4-inch
• Type IPS touch screen
• Resolution 480 x 480
• Brightness 500 cd/m2
• Audio Output Buzzer
• Wireless Network Only AP mode
• Card Reading Frequency 13.56 MHz
• Card Reading Distance 2 cm
• Card Type Mifare card
• TF Card Reserved
• DIP Switch 8 bits
• Cascade Interface 2
• Installation Surface OR flush
• Protective Level IP65, IK8
• Working Temperature -20 °C to 60 °C (-4 °F to 140 °F)
• Working Humidity 10% to 95% (no-condensing)
• Dimensions 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
• Power Supply 12 VDC, supplied by the main module
• Power Consumption≤ 4 W
