Manufacturer: Roger Technology

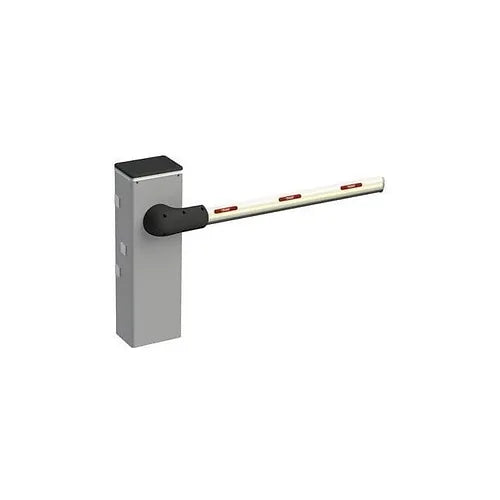

ROGER TECHNOLOGY BI/008 - Bionik Brushless 36V DC - up to 8 meters
ROGER TECHNOLOGY BI/008 - Bionik Brushless 36V DC - up to 8 meters
SKU:BI/008
Regular price
£2,190.78
Regular price
Sale price
£2,190.78
Unit price
/
per
Tax included.
Couldn't load pickup availability
Description
BI/008 - Bionik Brushless 36V DC - up to 8 meters - super intensive use - Barrier only
BI/008
Automatic Barrier BRUSHLESS 36V DC super intensive use up to 8 meters, with operator and and built in digital control panel and absolute encoder on board.
This product doesn't include a boom, but these are suitable for usage: BA/128/4 booms. Product requires KT244 fixing plate.
Product Information
| BI/008 | |
| Barriers: | Up to 8 mt long |
| Power line supply: | 230V AC - 50 Hz |
| Motor power supply: | 36V DC |
| Electrical absorption: | max. 18A |
| Power rating: | 300W |
| Frequency of use: | Super intensive use |
| Torque: | 10 - 400 N m |
| Operating temperature: | - 20 + 55 C° |
| Protection level: | IP54 |
| Reductor Type: | Irreversible |
| Opening time at 90°: | 9÷29 sec |
| Onboard control unit: | CTRL Digital Controller 36V DC |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR |
| Accessories power supply: | 24V DC |
| Colour: | Cabinet: painted RAL9006 arabesque grey - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt |
| Release system: | European Key cylinder |
| Batteries recovery: | Available (optional) |
| BUS synchronization Master/Slave: | Yes |
| Operating cycles per day (opening/closing - 24 hours no stop): | 2500 cycles |
| Maximum dimension product in mm (L x W x H): | 500 x 270 x 1237 |
| Product weight packed (Kg): | 104,7 |
