Manufacturer: Roger Technology

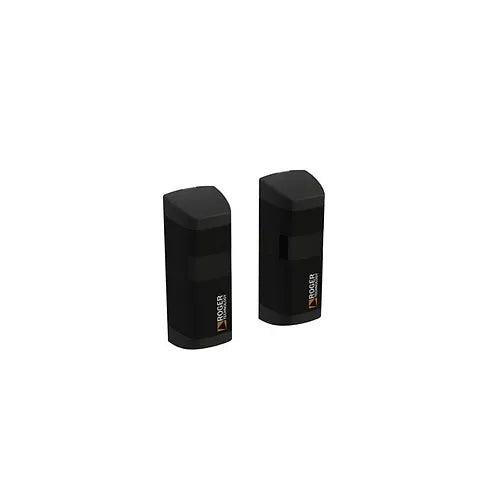

ROGER TECHNOLOGY M90/F4ESO 180 Photocells (SYNC WIRE)

ROGER TECHNOLOGY M90/F4ESO 180 Photocells (SYNC WIRE)

SKU:M90/F4ESO

Regular price £67.66
Regular price Sale price £67.66
Sale Sold out
Tax included.
Description

The photocells M90 /F4ESO which can be synchronised are presence detectors with infra-red technology powered by 12/24V AC/DC, which allow obstacles to be detected which are present on the optical axis between the transmitter (TX) and receiver (RX), can be used for automatic inputs.
The new Roger Series M90 photocells are designed in such a way as to increase the safety of the system and simplify their installation with several advantages.

  • Innovative design ideal for any architectural form.
  • Designed for installation in very narrow spaces.
  • Special covers to protect the screws with an scratch-proof support release system.
  • Ability to synchronise two photocell pairs.
  • Detector using LEDs of the quality of the signal to optimise the centring of the photocells.
  • Ability to adjust the range distances on two levels.
  • 180 Degree rotatable vertically and horizontally.
Specification
Protection level: IP55
Standard power: 12/24V ac 50Hz - 12/24V dc
Absorption: TX=19mA, RX=20mA
Maximum distance in open field: 10 - 15 m
Relay contacts max current: 0,5A RX
Relay contacts max voltage: 30V
Operating temperature: -20 C° + 60 C°
Installation Type: External
Maximun number of
photocells synchronized:
4
