Roger Technology SET-BR21/362 Brushless Underground swing gate 2 leaf kit

Description

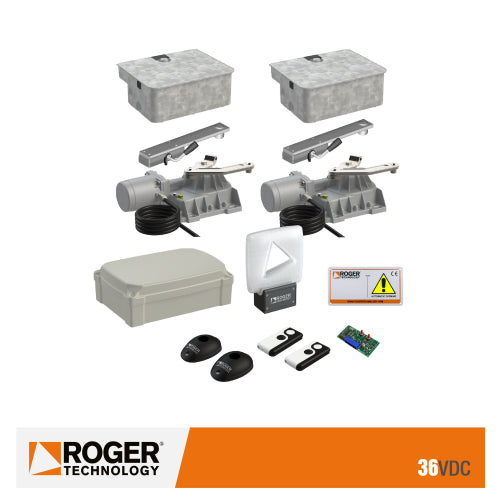

Roger Brushless 36V DC Irreversible underground gate kit for double leaf swing gates.

Additional Information

Low voltage motor, for intensive use with encoder.

Ideal for swing gates up to 5m length (see technical table below) dependent on the weight of the gate.

Supplied with 10m cables in cold galvanised foundation boxes.

Technical Specification

• Power Line Supply - 230V AC -50HZ
• Motor Power Supply - 36V
• Frequency of Use - Intensive Cycle
• Operating Cycles - 1300 per day - 24 hours no stop
• Product weight - 14.9kg
• IP67 Protection rating
• Operating Temperature - -20°C to +55°C
• Reductor type - Irreversible
• Opening time - 19 to 29 seconds
• Manoeuvre speed - 1.2 RPM
• Maximum opening - 105°
• Recommended Control panel - 230V Edge1 Box
