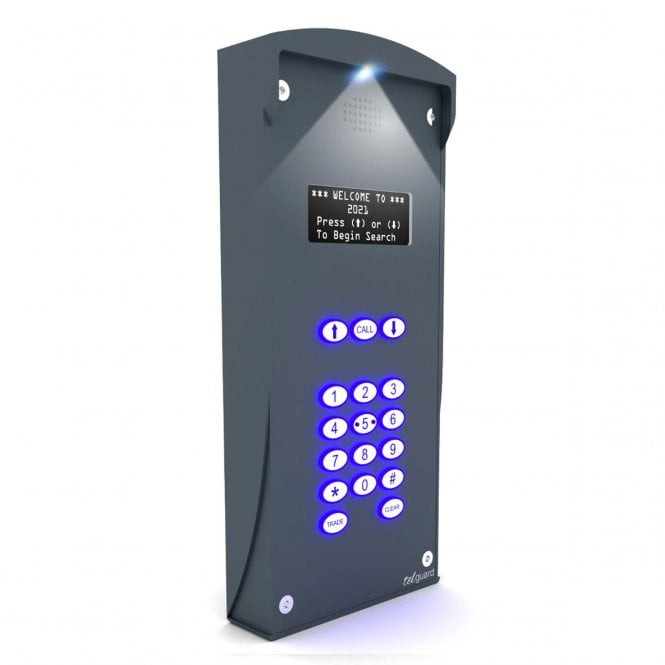

TELGUARD 4G ML Millennium - Anthracite

4G ML Millennium - Anthracite

• Up to 1000 users (comes with 100 as standard)
• 316 marine grade stainless steel faceplate with optional anthracite finish
• Low profile, high strength, sealed back box for greater performance and durability
• LED downlight
• Downward facing microphone 77-15
• 7 call diverts
• IP64 rated keypad
• Time clock with 9 profiles
• Backlit, vandal resistant keypad with 7 programmable colours
• Timed 'Trade' button
• 400 PIN codes for coded entry
• 900 Authorized dial to open numbers
• Event SMS alerts
• Scrolling display
• Aux triggered
• SMS alerts
• Dimensions: H 286mm x W 126mm x D 40mm

TECHNICAL SPECIFICATION

• POWER: 12 Volt 1 Amp. DC PSU fitted with a 3A fuse (supplied and must be dedicated to the Telguard intercom unit). Power Consumption: 120 mA Idle @ 12 Volts.
• TELEPHONE TYPE: Standard DTMF (Dual Tone Multi Frequency) generating telephone, cordless or mobile phone. (Note that VolP phones may require additional setup to use the DTMF standard).
• PROGRAMMING: Remotely programmable via App or SMS. Locally via USB cable.
• RELAYS: 3: 1 x 2A, 2 x 200mA.
• INPUTS: 2 x Auxiliary, volt free.
• RELAY ACTIVATION TIME: 1 — 60 seconds, adjustable locally and remotely.
• OPERATING COMMANDS: Default #, 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#. All relay commands are configurable.
• TIME CLOCKS: The on board time clock enables custom profile functions to be activated.
• AUTHORISED CALL ACCESS: 900 telephone numbers can be stored. Calling the unit, from an authorized telephone number activates a predetermined relay.
• VOLUME: Adjustable 1 — 9 levels.
• RECOMMENDATION (when using Hub & Satellite configuration): Use 8 Core CAT 5 Cable: - Twisted pair x2 Mic - Twisted pair x2 Speaker - Twisted pair x2 CAN - Twisted paid x2 Power
• CABLE DISTANCE (when using Hub & Satellite configuration): 300m

Downloads

Telguard 4G ML Millennium
