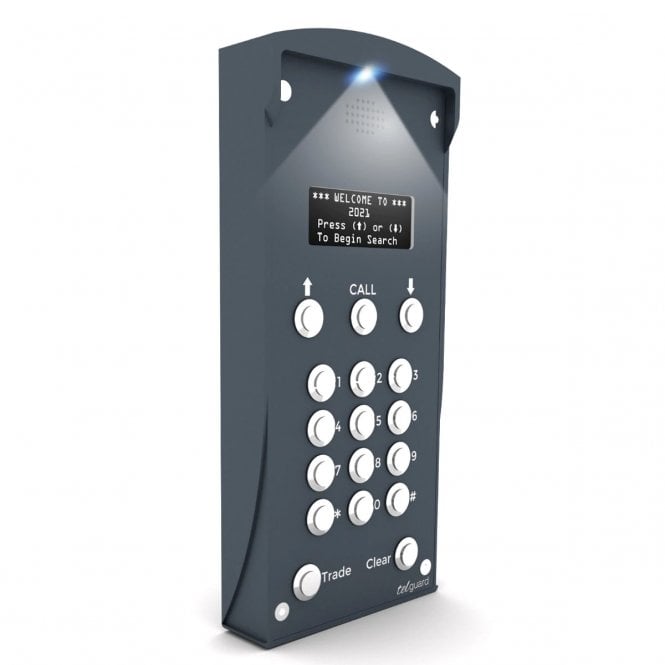

TELGUARD ML Senior - anthracite ML Senior anthracite, digital with LCD screen & keypad, up to 100 call points, surface moulded Code: A-4BDTS

ML Senior

• Up to 1000 users (comes with 100 as standard)
• 316 marine grade stainless steel faceplate with optional anthracite finish
• Low profile, high strength, sealed back box for greater performance and durability
• LED downlight
• Downward facing microphone
• 7 call diverts
• Time clock with 9 profiles
• Vandal resistant keypad
• Timed 'Trade' button
• 400 PIN codes for coded entry
• 900 Authorized dial to open numbers
• Event SMS alerts
• Scrolling display
• Aux triggered SMS alerts
• Dimensions: H 286mm x W 126mm x D 40mm

TECHNICAL SPECIFICATION

POWER: 12 Volt 1 Amp. DC PSU fitted with a 3A fuse (supplied and must be dedicated to the Telguard intercom unit). Power Consumption: 120 mA Idle @ 12 Volts.

TELEPHONE TYPE: Standard DTMF (Dual Tone Multi Frequency) generating telephone, cordless or mobile phone. (Note that VolP phones may require additional setup to use the DTMF standard).

PROGRAMMING: Remotely programmable via App or SMS. Locally via USB cable.

RELAYS: 3: 1 x 2A, 2 x 200mA.

INPUTS: 2 x Auxiliary, volt free.

RELAY ACTIVATION TIME: 1 — 60 seconds, adjustable locally and remotely.

OPERATING COMMANDS: Default #, 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#. All relay commands are configurable.

TIME CLOCKS: The on board time clock enables custom profile functions to be activated.

AUTHORISED CALL ACCESS: 900 telephone numbers can be stored. Calling the unit, from an authorized telephone number activates a predetermined relay.

VOLUME: Adjustable 1 — 9 levels.

RECOMMENDATION (when using Hub & Satellite configuration): Use 8 Core CAT 5 Cable:

- Twisted pair x2 Mic

- Twisted pair x2 Speaker

- Twisted pair x2 CAN

- Twisted paid x2 Power

CABLE DISTANCE (when using Hub & Satellite configuration): 300m
