Manufacturer: Videx

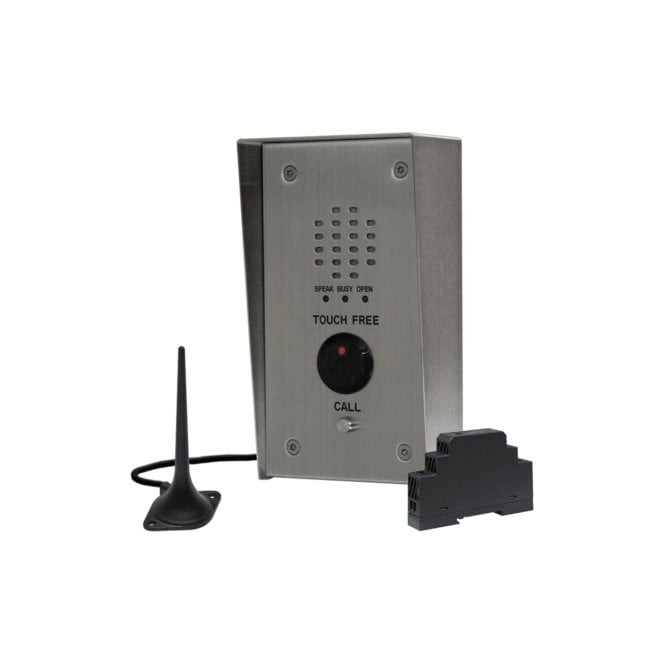

VIDEX GSMVRKNT-1S/4G NT series touch free one station 4G GSM intercom

VIDEX GSMVRKNT-1S/4G NT series touch free one station 4G GSM intercom

SKU:GSMVRKNT-1S/4G

Regular price £864.60
Regular price Sale price £864.60
Sale Sold out
Tax included.

Touch-free VR120 1 button vandal resistant audio entry kits (flush and surface kits available).

The VR120 entry panel (all 120mm wide) has DDA compliant call progress LEDs for “SPEAK”, “BUSY” and “DOOR OPEN” along with distinct audio reassurance tones to assist the visitor. The touch-free call button incorporates infrared sensor proximity technology offering visitors a means to make a call without the need to press a button. The visitor simply approaches the button with their hand and a call will be placed.



ADDITIONAL INFORMATION

Options of either a traditional vandal resistant audio entry kit (with audiophone & psu) or a vandal resistant GSM audio entry kit (with antenna & psu, SIM card required).

FEATURES:

  • Touch free, DDA compliant audio entry panels.
  • Traditional VR120 series audiokit or VR120 series 4G GSM audiokits available.
  • Buttons adjustable activation range from 3cm – 15cm.
  • Buttons adjustable activation time from 0.5 seconds to 20 seconds or latch.
  • Buttons status LED: red when power on and in standby, blue when activated.
  • IP55 rated panels (IP65 rated button with resin potted internal electronics).



NT TOUCH FREE SERIES:

The NT series offers both exit buttons and entrance panels in a touch free format using infrared sensor technology, providing a no touch solution for companies.

As businesses return to normal, health and safety is the key priority. With our touch free entry panels, it means visitors can alert someone of their arrival without needing to press a button. The panels can also include proximity access control, allowing authorized personnel to enter the building touch free. Both surface and flush exit buttons are also available to allow users to exit without the need to press buttons.

The panels and buttons are compatible with a number of Videx systems including our IP system, two wire video kits and leading GSM kit. The panels and exit buttons, which are for internal use unless appropriately protected externally, boast several key features including adjustable activation range (3cm-15cm) and activation time (from 0.5 seconds to 20 seconds). All panels are IP55 rated and require a power input of 12Vdc. They can operate in a temperature change from -20 degrees to 75 degrees.

The new touch free range can offer better protection against transmission of viruses that can spread from touching common use surfaces and devices. We can also provide fully customized options, offering bespoke entry panels and exit buttons that are in keeping with the surroundings of the building.

SPECIFICATION

GSMVRKNT AUDIOKITS:

  • Panel: VR120 316 grade brushed stainless steel.
  • Button: 1x Infrared Sensor Touch Free button.
  • Antenna: 433 GSM antenna including magnetic base.
  • Power Supply: 520M (8Vdc, 12Vdc & 13Vac) psu.
  • Panel Dimensions (mm): 120 (W) x 220 (H)
  • Kit options: Flush or surface (see product variants).

BUTTON SPECIFICATION:

  • Power input: 12Vdc.
  • Current: 25mA (standby), 37mA (during operation).
  • Relay: Dry contact output (CO, NO, NC) Max. 1A@30Vdc.
  • Button material: Black polycarbonate fire & UV proof material.
  • Operating temperature: -20˚C ~ 75˚C.
